Gas / Oil-Fired Steam / Hot-Water Boilers

Product Range

Rated evaporation: 3t/h - 1OOt/h
Rated steam pressure: l.OMPa - 5.4MPa
Rated thermal power: 2.8MW - 90MW
Specific parameters are shown in Table 2

Structural features of this series of products

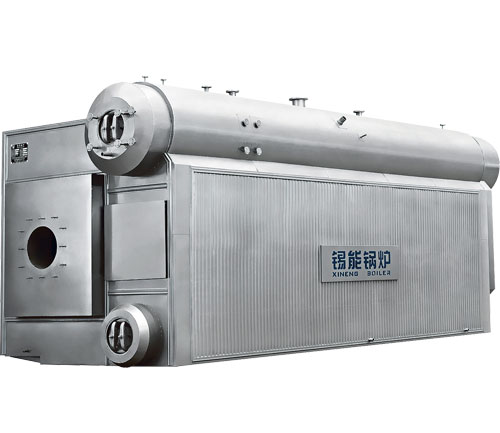

• The water pipe steam boiler adopts double/triple drum of D type or Structure type of membrane wall furnace. The whole boiler consists the boiler body on the top/in the middle, the lower water drum, the membrane water wall, the convective heat transfer tube bundle, the superheater, the tail economizer and the condenser.

• The firebox adopts full-film water wall structure with good sealing with no air leakage and less heat dissipation.

• Convection tube bundle with one stroke can reduce the side resistance of flue gas, optimize the design of economic flow rate, micro-positive pressure combustion, and improve the heat transfer efficiency.

• It has larger furnace volume, cross-section width and length size, and is suitable for various burner layout and it is convenient arrangement of multiple burners.

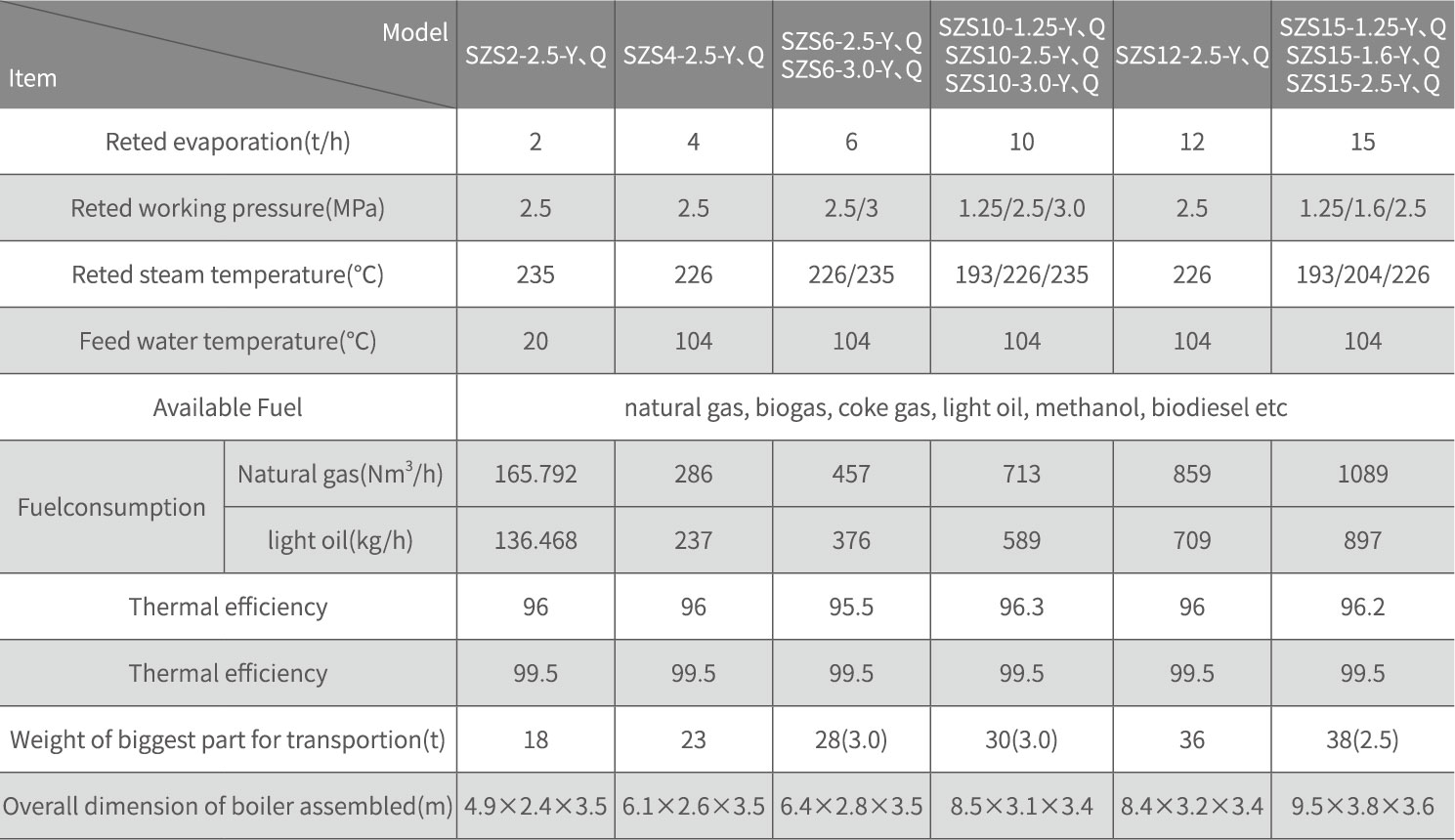

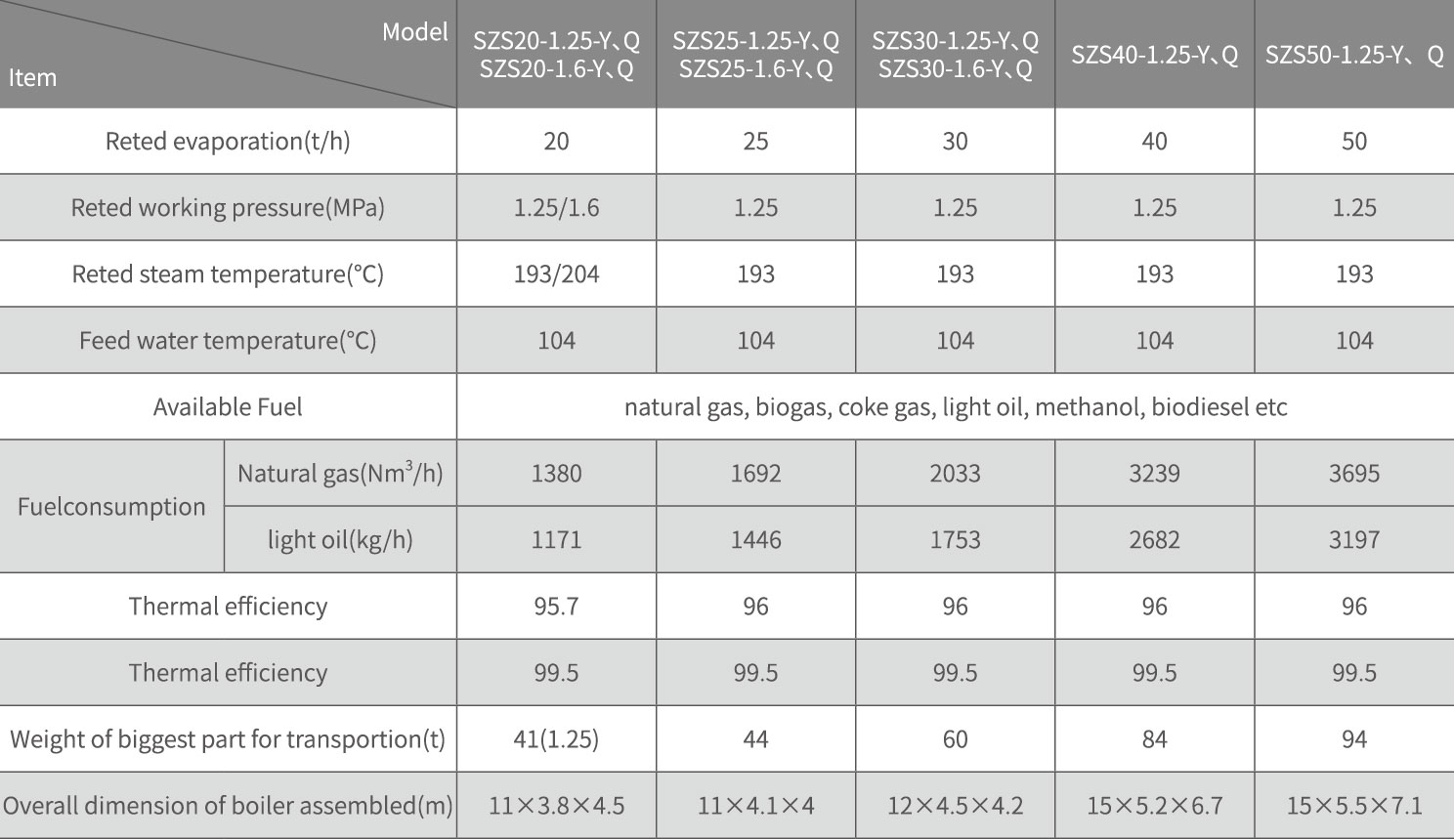

Parameters Table 2
